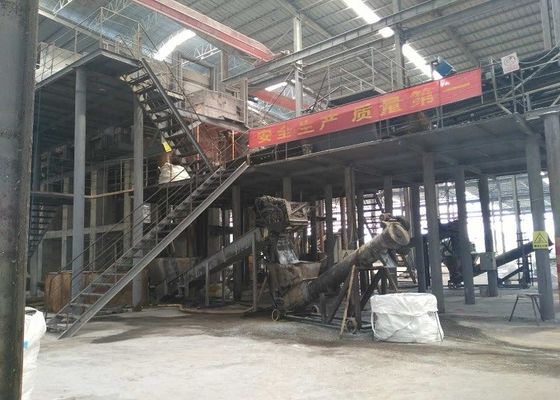

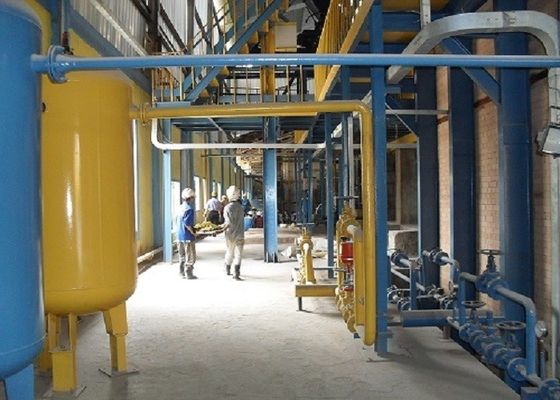

Automatic Sodium Silicate Production Plant Quartz Sand Soda Ash Material

Large Image : Automatic Sodium Silicate Production Plant Quartz Sand Soda Ash Material

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Meibao
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard packing or as customer requirements
Delivery Time:	40 days
Payment Terms:	L/C, T/T
Supply Ability:	2 sets/month

Contact Now

Detailed Product Description

Product Name:	Energy Saving Dry Process Sodium Silicate Making Machine / Solid Sodium Silicate Plant	Function:	Dissolving Tank
Raw Material:	Quartz Sand, Soda Ash	Machine Type:	Automatic, Semi-automatic
Product:	Sodium Silicate, Water Glass	After-sales Service Provided:	Online Support, Field Installation, Commissioning And Training
Highlight:	sodium silicate plant machinery , sodium silicate furnace

Energy Saving Dry Process Sodium Silicate Making Machine / Solid Sodium Silicate Plant

Process Description

The main raw materials of dry process sodium silicate production are soda ash and quartz sand. The process is batching, firing and dissolving.

The quartz sand and soda ash are weighed in proportion according to the formula, and are automatically put into the furnace through the conveying device. Chemical reaction occurs at a high temperature of 1350-1450 ℃ after the material is put into the furnace. The molten sodium silicate through air cooling or water cooling to form a glassy solid particle sodium silicate. Finished products are sent to the warehouse or stacked or cooled to room temperature for sale. The reflector adopts regenerative preheater. The 1200 ℃flue gas from tail can make air and gas preheat to 1100 ℃ and 900 ℃ respectively. Exhaust temperature dropped to below 180 ℃ to achieve energy conservation and cost reduction.

Technology Characteristics

a. Steamlined process line,high efficiency

b. Key equipment running steadily,ware resisting

c. Entire line fully meets the national environmental protection requirements

Product attributes

Product Name	Energy Saving Dry Process Sodium Silicate Making Machine / Solid Sodium Silicate Plant
Function	Dissolving tank
Capacity	10-200 ton/day
Raw material	Quartz sand, soda ash
Product	Sodium silicate, water glass
Machine type	Automatic, semi-automatic
After-sales service provided	Online support, Field installation, commissioning and training
