Stable Sodium Silicate Manufacturing Plant Automatic Semi - Automatic Type

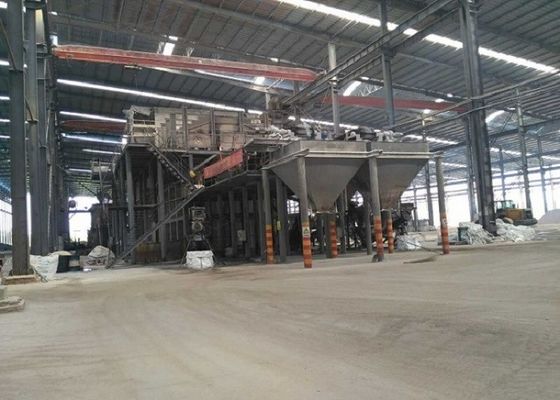

Large Image : Stable Sodium Silicate Manufacturing Plant Automatic Semi - Automatic Type

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Meibao
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard packing or as customer requirements
Delivery Time:	40 days
Payment Terms:	L/C, T/T
Supply Ability:	3 sets/month

Contact Now

Detailed Product Description

Product Name:	Industrial Grade Solid Sodium Silicate Making Plant	Heating Method:	Furnace
Raw Material:	Quartz Sand, Soda Ash	Machine Type:	Automatic, Semi-automatic
Usage:	Produce Solid Sodium Silicate	Capacity:	10-200 Ton/day
Highlight:	sodium silicate production equipment , sodium silicate plant machinery

Sodium Silicate Manufacturing Equipment / Solid Sodium Silicate Drying Furnace

Process Description

1. Slurry preparation:slurry preparation can be divided into manual slurry preparation and automatic slurry preparation. Manual slurry preparation is manually weighing the quartz sand and soda ash according to the proportion of the formula, then through lift put into the furnace to react. Automatic slurry preparation is automatically weighing the quartz sand and soda ash, then through the delivery device automatically put into the furnace to react.

2. Firing:after the materials were put into the furnace, the chemical reaction is occurred at the high temperature of 1350℃-1450℃.The molten sodium silicate form solid glassy solid lumps by air cooling or water cooling. Finished products are sent to warehouse or stacked or cooled to normal temperature. The regenerative preheater is used in the design of the reflector. The air and gas can be separately preheated to 1100℃ and 900 ℃ by 1200 ℃ of the 1200 ℃ of the flue gas from furnace, temperature of exhaust gas is reduced to below 180 ℃, so as to save energy and reduce consumption.

3. Melting:If liquid sodium silicate is necessary, melt the solid sodium silicate into liquid. There are two ways to melt. The water-cooled solid is melted by the rotary dissolving tank, and the air-cooled solid is melted by static dissolving tank.

Technology Characteristics

a. Automatic/ semi-automatic production

b. The layout is rational, save energy

c. High production efficiency and stable quality

Product attributes

Product Name	Industrial Grade Solid Sodium Silicate Making Plant /Sodium Silicate Furnace
Heating method	Furnace
Capacity	10-200 ton/day
Raw material	Quartz sand, soda ash
Usage	Produce solid sodium silicate
Machine type	Automatic, semi-automatic
Installation	Engineer guide

Stable Sodium Silicate Manufacturing Plant Automatic Semi - Automatic Type 0
